Liberty

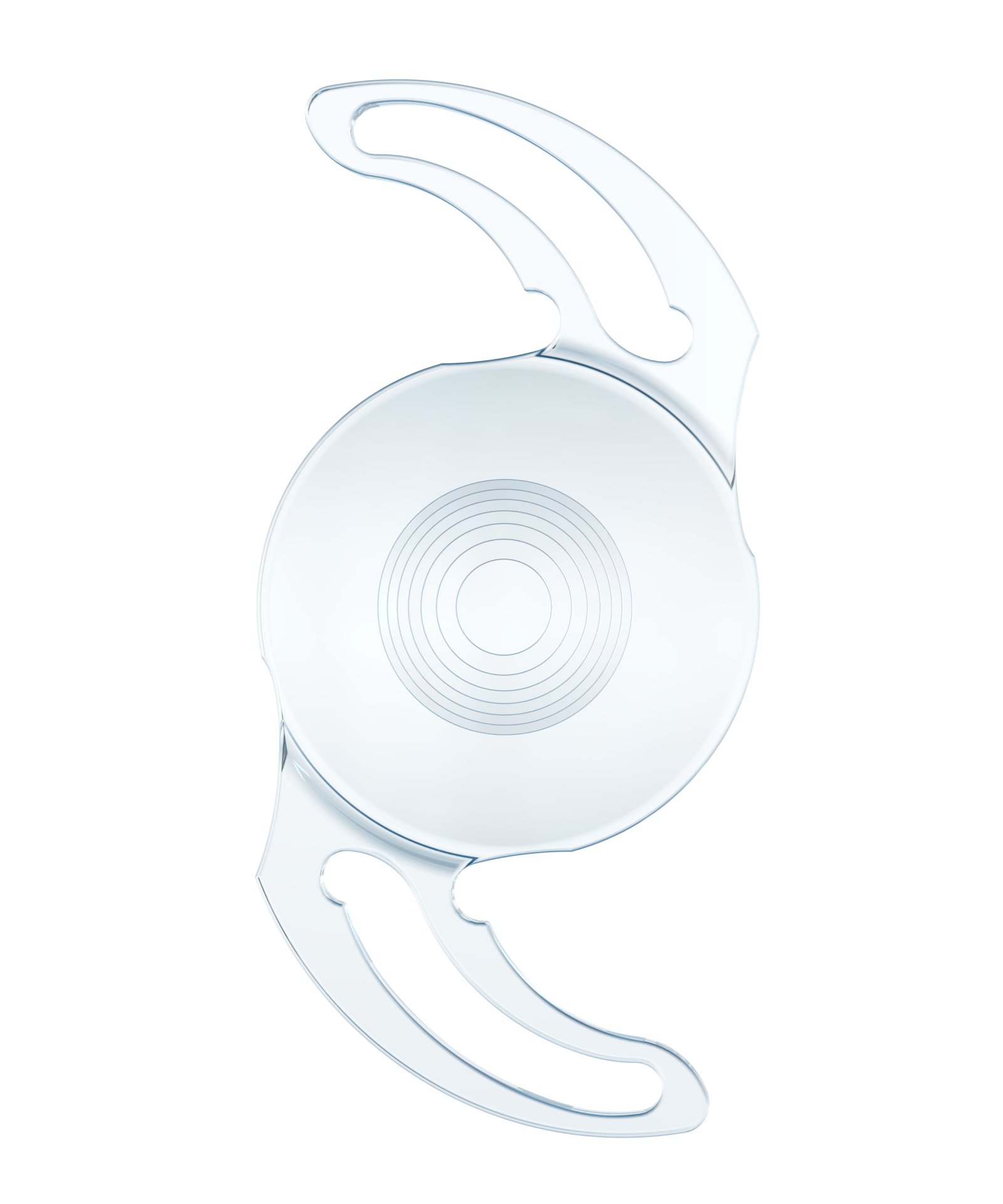

The most balanced trifocal IOL – Single-piece hydrophilic trifocal IOL for implantation into the capsular bag. Liberty equates to spectacle independence without the compromise of reduced image quality or visual acuity at near and far distances.
- 7 steps in a precise diffractive array with a
- 3 mm diameter leaving a
- 75% refractive lens surface
- Minimal dysphotopic phenomena
- Superior contrast sensitivity
- Uncompromised near vision
- PUPIL DEPENDENT using physiological NEAR TRIAD
Download
Technical specifications
Brochures & Manuals
Description & Technical Specs
Powers: +8.0 D → +35.0 D (0.5 D steps)
Addition (at the IOL plane): +3.5 D near ; +1.75 D intermediate
Material: Copolymer of hydrophobic and hydrophilic monomers with 25% water content, UV absorber and Natural Yellow filter
RI: 1.46
Abbe No: 58
Optic Diameter: 6 mm
Overall Diameter: 13 mm
Optic Design: Aspheric – Aberration Neutral ;Biconvex (+8.0 D → +35.0 D)
Nominal A-constant: 118.9
Diffractive Zone: 3 mm diameter diffractive array on the anterior surface utilizing EPS technology
Haptic Design: Posterior vaulting fenestrated C-loop design with 0° angulation
PCO Prevention: 360° Special Square Edge (patented)
Estimated Incision Size: 1.8 – 2.2 mm
Shelf Life: 5 years after sterilization
Recommended Injector: +8.0D → +29.5D: MEDJET MB1.8 ; +8.0D → +35D: MEDJET MA2.2
